Visualizing Checkov Output in Prisma Cloud
You can integrate Checkov with Prisma Cloud to view the results of Checkov scans in Prisma Cloud.
Integration
Get your Access Key and Secret Key

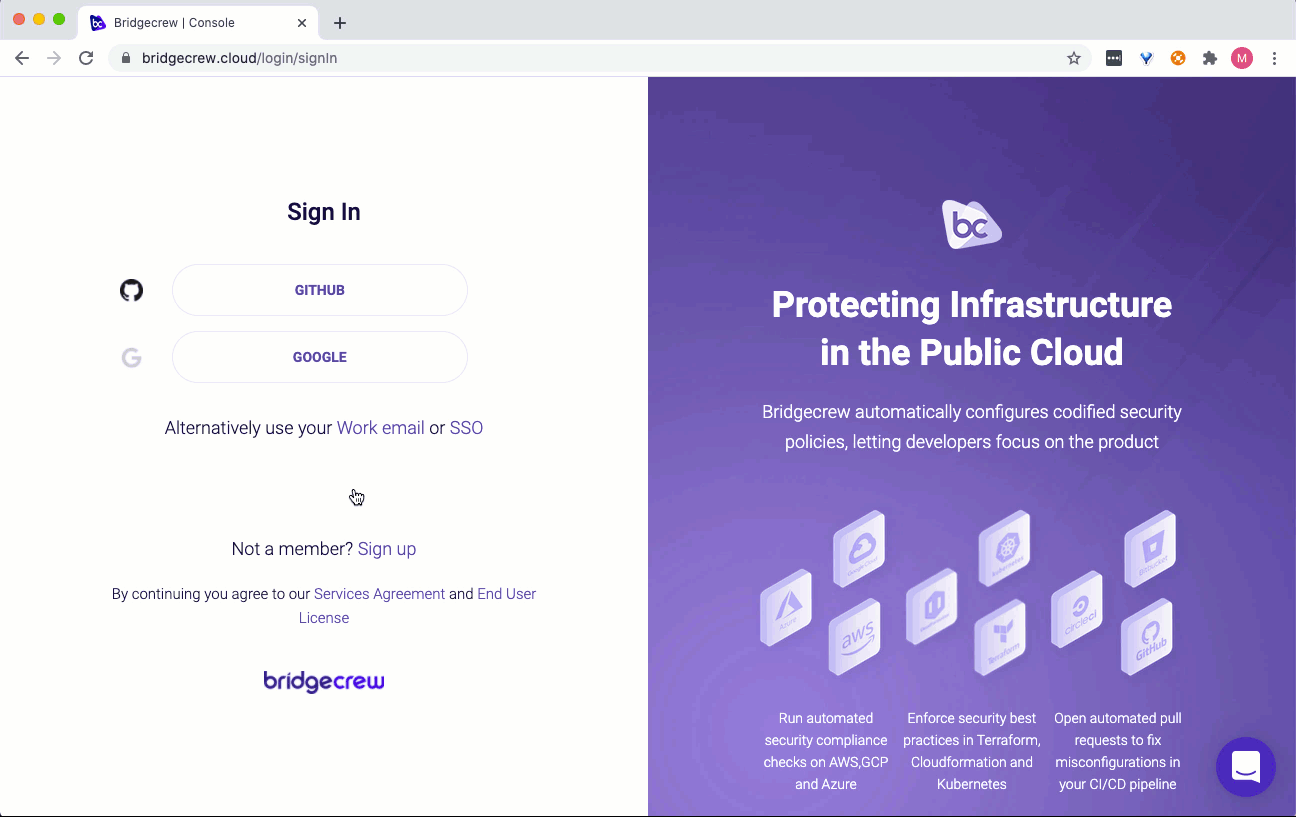

To get a Prisma Cloud issued Access Key and Secret Key token, follow the steps in the Prisma Cloud documentation.
Execution
After acquiring the Access Key and Secret Key token, run Checkov as follows:
checkov -d <directory> --bc-api-key <access key>::<secret key> --prisma-api-url <prisma api url> --repo-id <repo_id> --branch <branch>
Or by using the -f file flag:
checkov -f <file_1> <file_2> ... <file_n> --bc-api-key <access key>::<secret key> --prisma-api-url <prisma api url> --repo-id <repo_id> --branch <branch>
The table below details the arguments used when executing the API token:
| Argument | Description |
|---|---|
<access key>::<secret key> |
Prisma cloud API key in the following format ACCESS_KEY::SECRET_KEY |
<repo_id> |
Identifying string of the scanned repository, following the standard Git repository naming scheme: <owner>/<name> |
<branch> |
Branch name to be persisted on platform. Defaults to the master branch. NOTE: Ensure the scanned directory (supplied in the -d flag) is currently checked out from the given branch name. |
Environment Variables
To enrich Prisma Cloud’s context with CI/CD systems data, we strongly recommend that Checkov uses environment variables.
| Environment Variable | Description | Example |
|---|---|---|
| BC_FROM_BRANCH | Source branch | feature/foo |
| BC_TO_BRANCH | Target branch | main |
| BC_PR_ID | Pull request identifier | 825 |
| BC_PR_URL | Link to pull request/merge request | https://github.com/bridgecrewio/checkov/pull/825 |
| BC_COMMIT_HASH | Commit identifier | 5df50ab857e7a255e4e731877748b539915ad489 |
| BC_COMMIT_URL | Link to commit in CI/VCS system | https://github.com/bridgecrewio/checkov/commit/5df50ab857e7a255e4e731877748b539915ad489 |
| BC_AUTHOR_NAME | User associated with the CI trigger | schosterbarak |
| BC_AUTHOR_URL | Link to the user profile page | https://github.com/schosterbarak |
| BC_RUN_ID | CI run identifier | 525220526 |
| BC_RUN_URL | Link to the run in the CI system | https://github.com/bridgecrewio/checkov/actions/runs/525220526 |
| BC_REPOSITORY_URL | Link to the GitHub repository | https://github.com/bridgecrewio/checkov/ |
| BC_SOURCE | Name of CI system being integrated | githubActions |
| PRISMA_API_URL | URL of Prisma app for platform integration | https://app3.prismacloud.io |
| SLS_FILE_MASK | File names mask for all serverless files | serverless.yaml,serverless.yml |
| CHECKOV_REQUEST_CONNECT_TIMEOUT | Number of seconds requests will wait to establish a connection to the platform | 3.1 |
| CHECKOV_REQUEST_READ_TIMEOUT | Number of seconds requests will wait for the platform to send a response. This duration matches our timeout settings, so changes are likely unnecessary. | 30 |
| CHECKOV_REQUEST_RETRIES | Number of retries requests will do towards the platform | 3 |

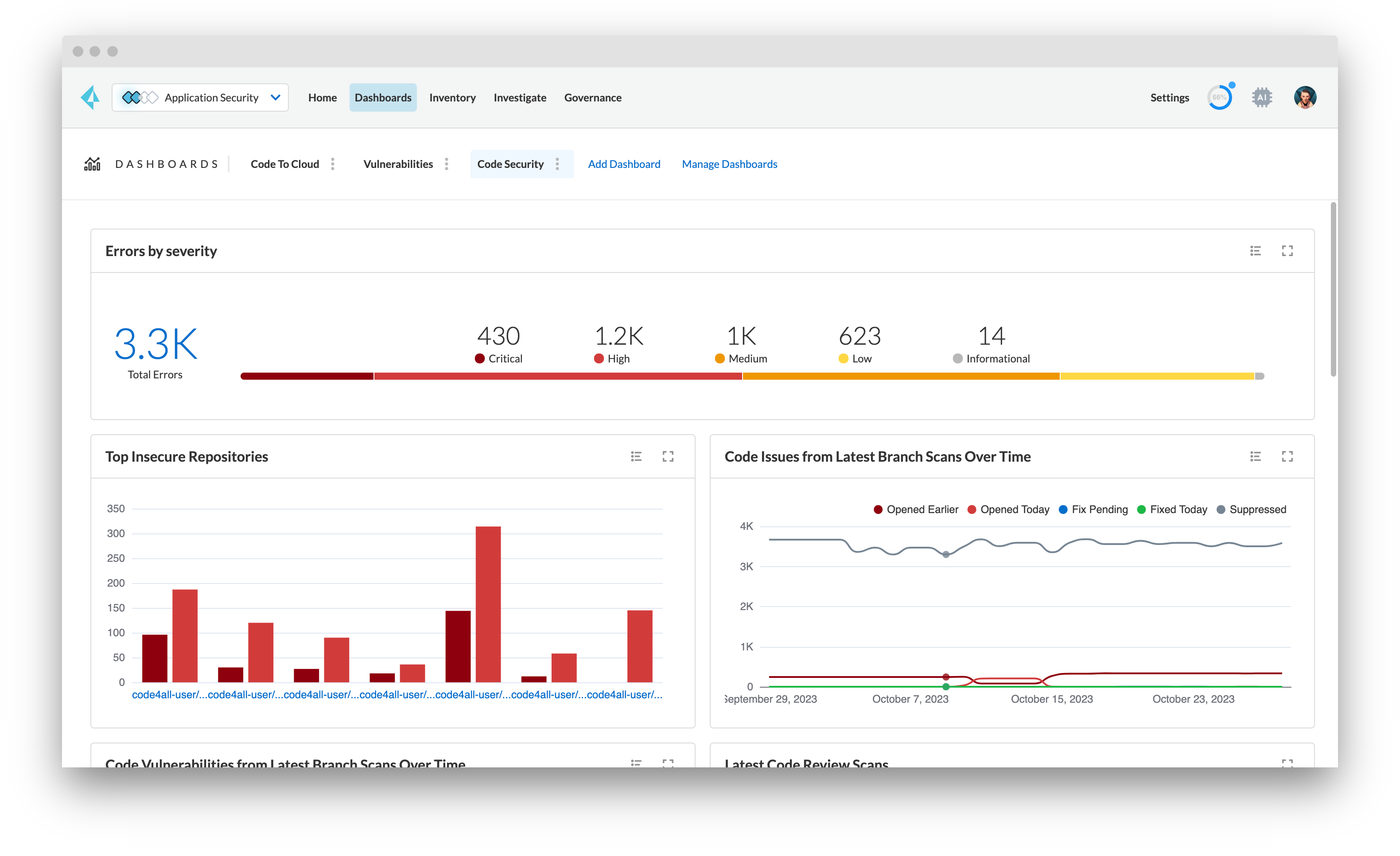

Prisma Cloud platform view
After successfully executing, scan results are persisted in Prisma Cloud, and can be seen in Projects.
